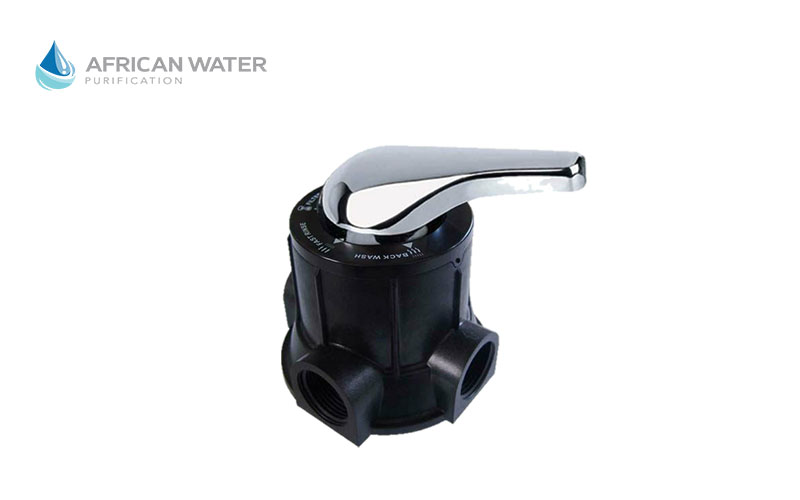

Manual Head 2 Inch for FRP Vessel

Manual Head 2 Inch for FRP Vessels

The manual valve is used with the frp vessel to filter out a wide array of unwanted substances from water depending on the filter media that is used inside the vessel

1. It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.

2. No water passes the valve in rinse in single tank type.

3. Reasonable design of the flow passage: Service→ Fast Rinse→ Backwash → Fast Rinse → Backwash →Service..

4. It can operate under pressure, without leakage.

Application

1. Residential filtration system

2. Swimming pool filtration equipment

3. Active carbon , Sand filter , DMI65 , AFM , Aqua Stab , Clinox , Mixed Media

1. Water Pressure----------------------------------------------Max 6 Bar

2. Water Temperature-----------------------------------------5 ºC-45 ºC

3. Water Turbidity-----------------------------------------------<20 FTU

4. Inlet/Outlet-----------------------------------------------------2 Inch Female

5. Drain------------------------------------------------------------2 Inch Female

6. Base-------------------------------------------------------------4 Inch Threaded

7. Riser Pipe------------------------------------------------------1 1/2 Inch

8. Max Flow Rate-------------------------------------------------10 m3/h

9. Suitable Tank Size ---------------------------------------Vessel 1465 / 1665 / 1872 / 2162 / 2472
