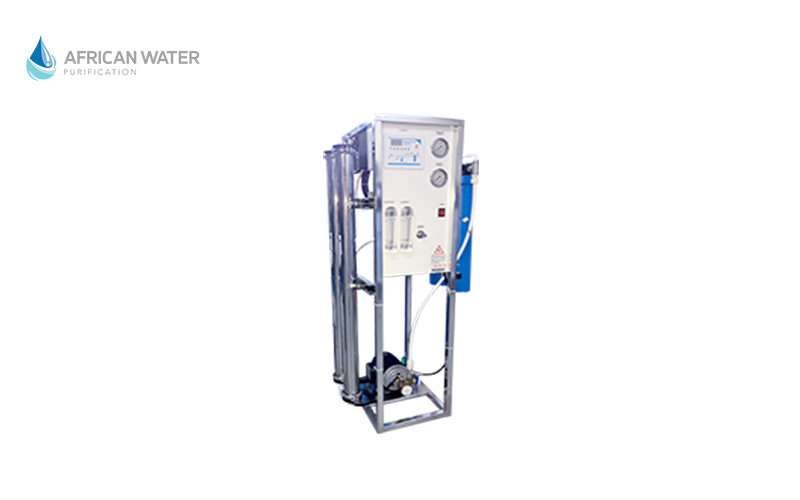

6000 Litres Per Day/ 200 Litres Per Hour @ 25°C
Can treat a wide range of contaminated water
Remove 99.8% of contaminants including bacteria, pesticides, minerals and chlorine
Pre-filter treatment to protect membrane from premature fouling
Manufactured on a sturdy frame for easy transportation
How it works:
The Reverse Osmosis System removes 99.8% of contaminants from water including bacteria, dirt, rust, sand, chlorine, mud, chemicals, heavy metals, organic molecules, pesticides, herbicides, viruses and parasites.
As the membrane captures contaminants in the water they begin to build upon the membrane’s surface.
To prevent the contaminants from damaging or blocking the membrane the system is constantly flushing the membrane as the system runs.
The water wastage ratio is about 4:1, which means that for every 1 litre of clean water produced there is 4 litres that is used to flush the membrane.
RO system is also removing minerals from the water, providing you with clean water that has little to no mineral content.
Production capacity: 1600GPD/ 200LPH @ 25°C
Salt rejection: 96-98%
Recovery rate: 50-75%
Connection: 3/8” Feed, 1/2” Permeate, 1/2” Concentrate
Dimensions [l x b x h]: 126 x 45 x 45cm
2 x RO membrane: 2.5” x 40”
Membrane housing: SS304 body + ABS end caps – 2054 x 2pc
Pump: Italian Rotary Vane Pump 400LPH@12Bar + 1/2HP Taiwan Motor
Frame: Electro-plated SS304
Pre-Filter: (20” KF Housing + PP Cartridge 5um) x 2 sets
Solenoid valve: x 2
Low pressure switch: x 1
Concentrate recycling valve x 1
Control Panel Components
RO Controller: Pre-programmed RO working procedures + permeate TDS monitor
Pressure gauges x 2: Filter feed + RO feed
Flow Meters x 2: RO Permeate + RO Concentrate
Pressure Regular: SS316
Main power switch: x 1
Spot-free car wash
Small water bottling plants
Other manufacturing facilities
Brackish water desalination (TDS600-1500ppm)
