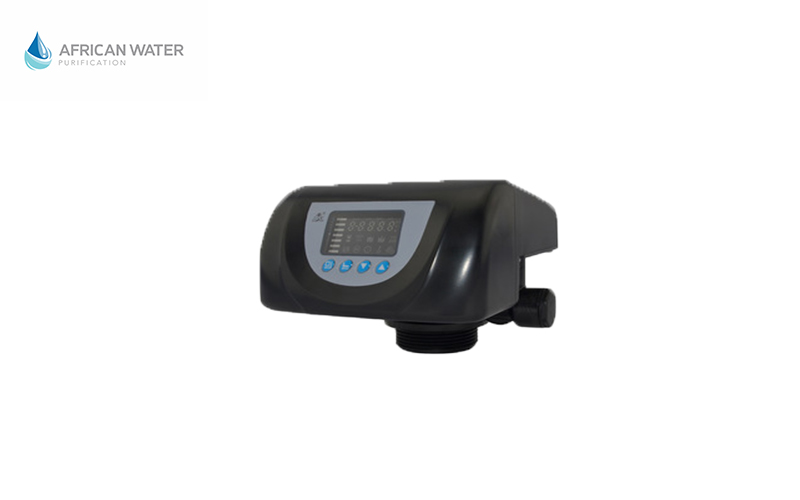

Automatic Filter Head For FRP Vessel 1 Inch

Description The 1 Inch Digital Automatic Backwash Valve Head can be used with several different Filtration Medias such as Activated Carbon, Silica Sand, DMI65, or Activated Filter Media (AFM) Glass Media.

The Automatic Backwash valve Head allows you to backwash out sediment, dirt, rust, and other large particles that are caught between the media granulates.

The Automatic Valve head uses a digital control and timer to automatically go through the backwash cycle.

The Automatic Valve head is very easy to program and operate. The Automatic Head allows you to set the backwash to take place after a set number of days, and at a particular time of day.

The head comes with a built in capacitor, which helps to save the valve head's settings for around 3 days if the power should fail. If there is no power for longer than this, then the valve head will revert to the factory settings.


Inlet : 1"/ 25 mm Female

Outlet: 1"/ 25 mm Female

Drain Pipe: 1"/ 25 mm Female

Power: 12 v DC includes transformer for 220 v

Vessels that goes with this Automatic Filter Head is the following: 735 , 844 , 1054 , 1354 , 1465

Pipe sizes that works best with this Automatic head is 3/4 Inch , 1 Inch , 1 1/4 Inch
